FSI B31
The FSI B31-980 is a powerful 38hp tracked stump grinder with a narrow 740mm width, allowing access through tight spaces while delivering serious cutting performance. Counter-rotating tracks, hydraulic cutting wheel drive, and a 120cm sweep arc make it ideal for professional arborists and contractors.
| Engine | Kohler ECH980 |
|---|---|
| Engine Power | 28 kW / 38 hp |
| Fuel | Petrol |
| Fuel Tank Capacity | 23 L |
| Cooling | Air |
| Weight | 680 kg |
| Length | 2335 mm |
| Width | 740 mm |
| Height | 1155 mm |
| Cutting Depth Below Ground | 40 cm |
| Cutting Height Above Ground | 68 cm |
| Sweep Arc | 120 cm |
| Max Cutting Depth Per Sweep | 3.6 cm |
| Cutting Wheel Diameter | 467 mm |
| Tooth System | FSI 25 |
| Number of Teeth | 8 |
| Cutter Wheel Drive | Hydraulic |
| Sweep System | Hydraulic |
| Ground Drive | Counter-rotating tracks |
| Brake | Automatic |
| Control Panel | Swing-out |
Book a FREE Demo
The FSI B31-980 packs 38 horsepower into a remarkably narrow package, measuring just 740mm wide. This combination of power and compactness makes it one of the most capable tracked stump grinders in its class, able to access restricted spaces that wider machines simply cannot reach — between buildings, through garden gates, and along narrow pathways — without sacrificing grinding performance.

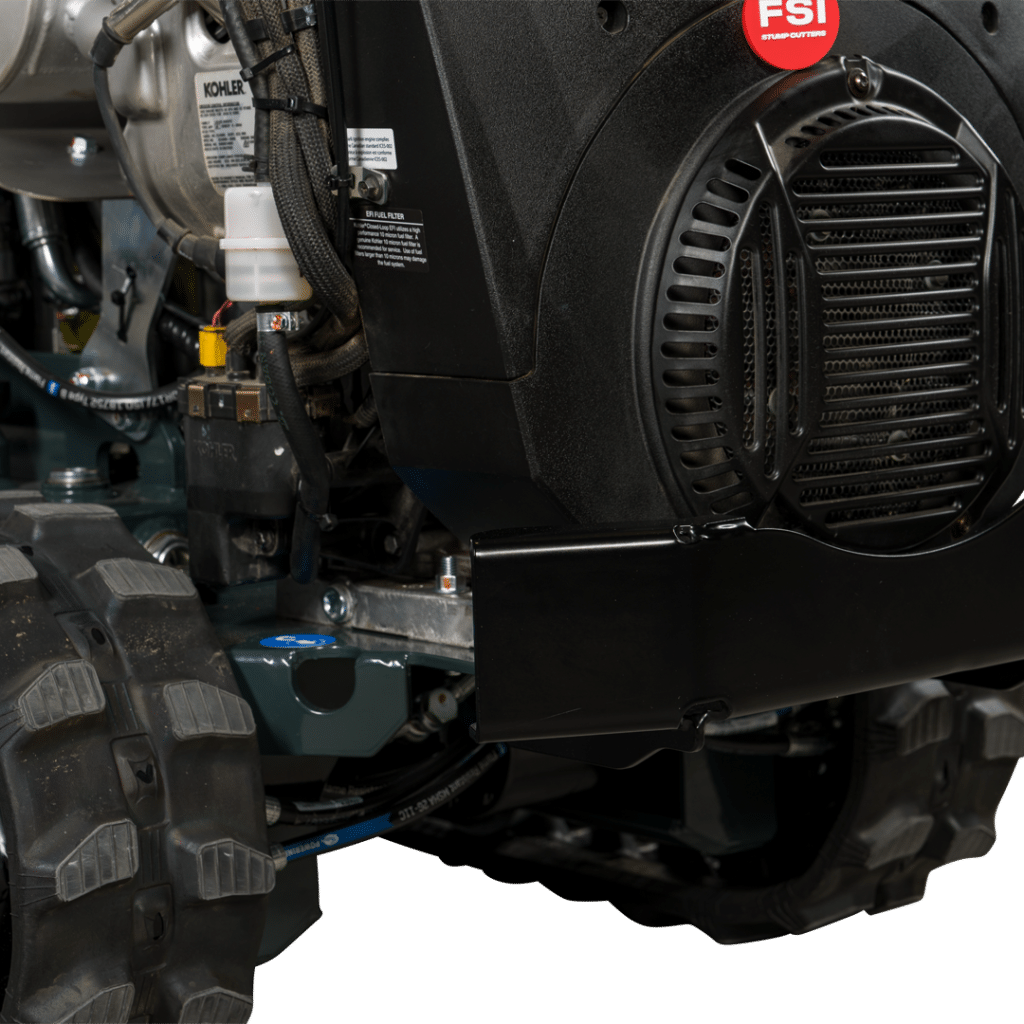

Power comes from a Kohler ECH980 air-cooled petrol engine producing 28 kW (38 hp), fed by a generous 23-litre fuel tank for extended working periods. Unlike belt-driven competitors, the B31-980 uses a fully hydraulic cutter wheel drive system. This eliminates the need for daily V-belt adjustments and replacements, significantly reducing maintenance costs and downtime over the life of the machine.
The 467mm cutting wheel is fitted with the FSI 25 tooth system, carrying 8 carbide-tipped teeth that deliver a maximum cutting depth of 3.6cm per sweep. The hydraulic sweep system covers a generous 120cm arc, capable of cutting 68cm above ground level and 40cm below. This impressive depth capacity ensures complete stump removal well below the surface, allowing for immediate replanting, landscaping, or construction work above.
Mobility is provided by counter-rotating rubber tracks that deliver exceptional traction and manoeuvrability across challenging terrain. The low centre of gravity and tracked design provide stability on slopes, soft ground, and uneven surfaces where wheeled machines would struggle. The automatic braking system engages when the controls are released, adding an important layer of safety during operation on inclines.

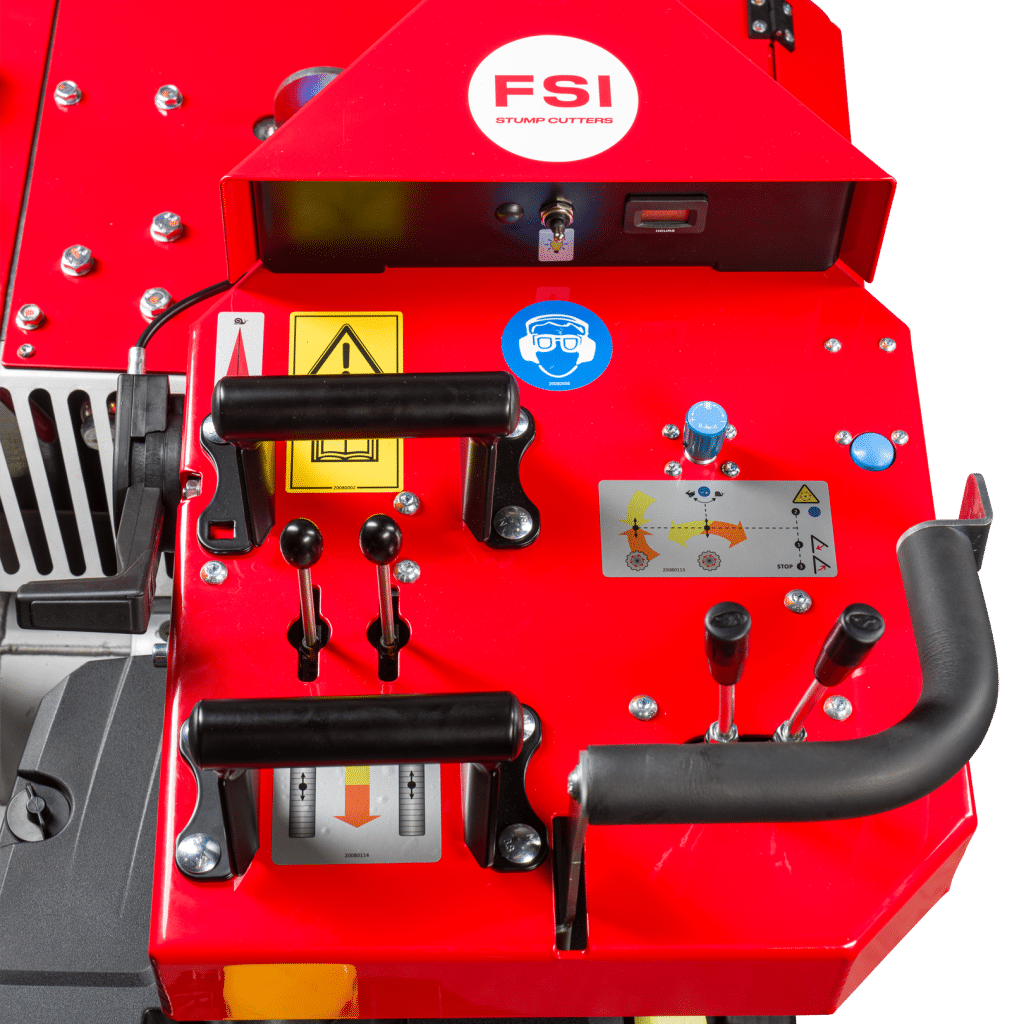

The swing-out control panel puts all operating controls within easy reach, with clearly labelled levers for track drive, cutting wheel engagement, and sweep operation. An integrated operation diagram provides at-a-glance guidance for operators. The compact dimensions of 2335mm length, 740mm width, and 1155mm height, combined with the 680kg operating weight, make the B31-980 transportable on a standard plant trailer.
Optional extras include a document tube for on-site storage of manuals and documentation, plus custom RAL colour finishes for fleet branding. The FSI B31-980 is built for professional use in arboriculture, landscaping, construction, and grounds maintenance where powerful stump removal is needed in access-restricted locations.
