MultiOne 6 Series

The MultiOne 6 Series is the smallest machine in the heavy-duty MultiOne range, but it punches well above its weight thanks to a combination of advanced engineering and a remarkably torque-dense powertrain. Built around the Double H pattern telescopic boom with automatic self-levelling, the 6 Series gives operators precise load control through the full range of boom extension and height, keeping the attachment level without constant manual adjustment. This is the same boom geometry used across the larger MultiOne models, scaled to fit a machine that weighs just 1,470kg.

At the heart of the 6 Series is the NEW Kohler KSD 1403 NA diesel engine, a 3-cylinder 1,391cc unit that produces 25hp and 90 Nm of torque from just 1,800 rpm. This makes it the most torque-dense engine in the sub-19kW class, delivering strong pulling and pushing force that operators will notice immediately when loading, grading, or working with hydraulic attachments. Crucially, the KSD 1403 meets Stage V and Tier 4 Final emission standards without requiring a DPF or AdBlue, eliminating the regeneration cycles and additive costs that plague many modern compact machines. The result is a simpler, more reliable engine with lower running costs.

Drive comes through Poclain direct drive radial piston wheel motors, delivering power straight to the wheels without belts, chains, or gearboxes to wear and maintain. This arrangement provides exceptional traction and pushing force across all four wheels, with a top speed of 23 km/h making the 6 Series one of the fastest mini loaders in its class for travelling between work areas. The hydrostatic transmission gives smooth, infinitely variable speed control in both directions.

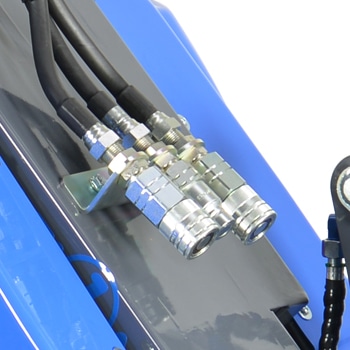

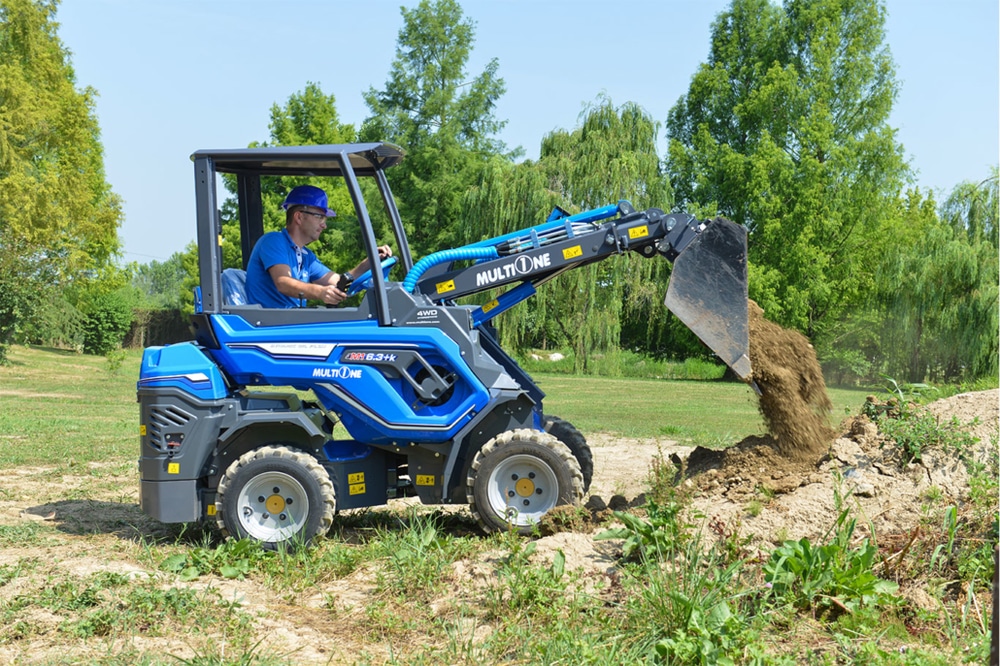

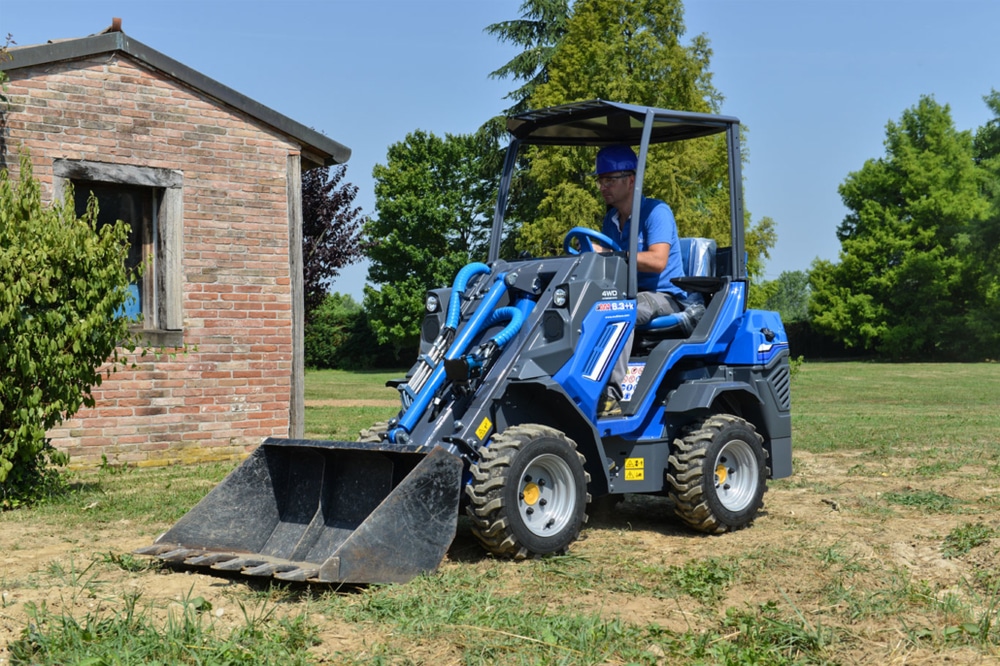

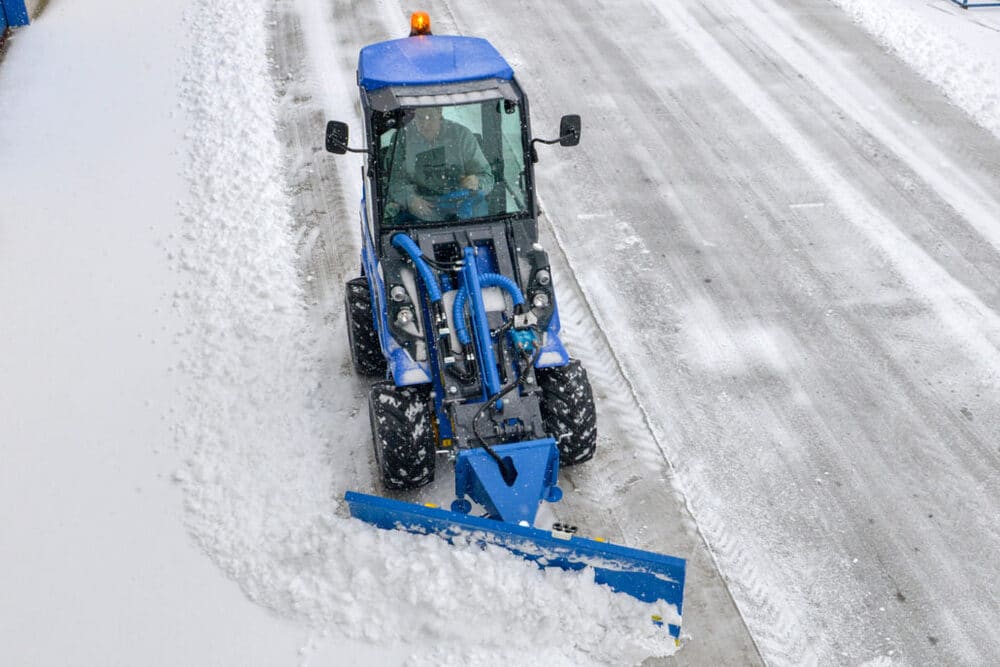

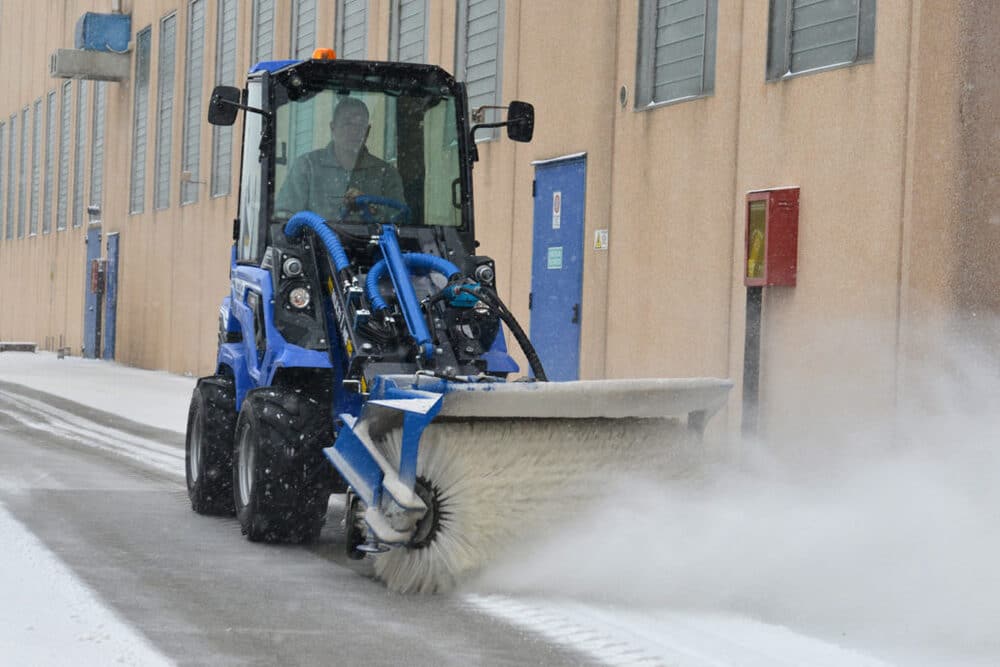

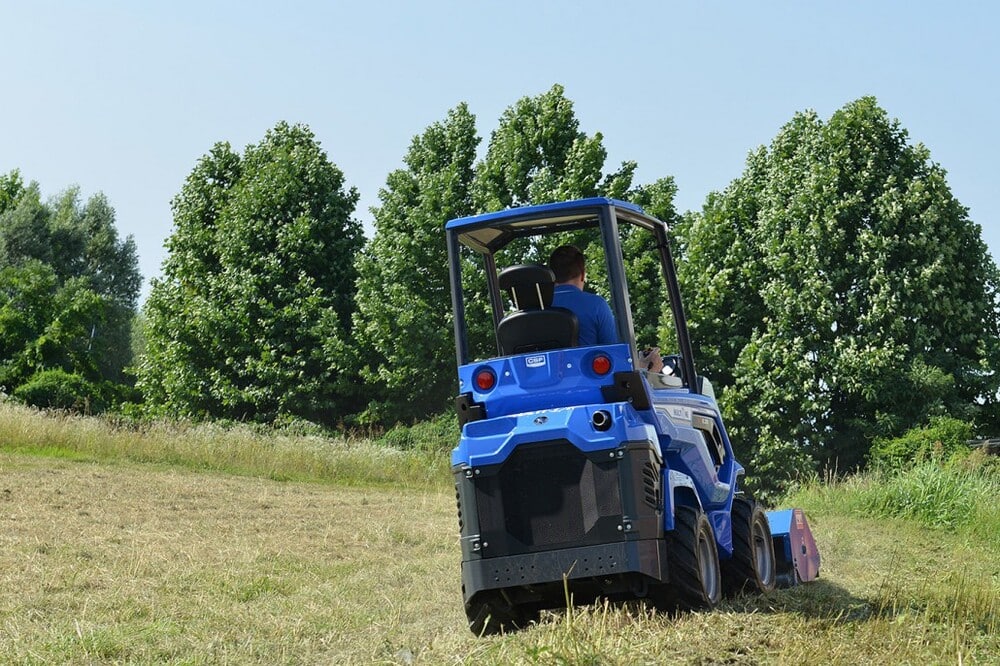

The hydraulic system delivers 60 litres per minute of auxiliary oil flow, which is a hi-flow specification that allows the 6 Series to power demanding attachments such as flail mowers, rotary brooms, and snow blades with full performance. The maximum lifting height of 2.92 metres and a lifting capacity of 1,120kg give the machine serious capability for loading trailers, stacking pallets, and handling bulk materials.

At 1,470kg, the 6 Series is compact and light enough for single-axle trailer transport, making it easy to move between sites. With a breakout force of 1,400kg and a turning radius of just 905mm on the inside, it is the ideal machine for professionals who need serious lifting capacity and attachment versatility in the smallest possible package.
