| 5.2K Engine | Kubota D902, 25 HP / 55 Nm @ 2,400 rpm |
|---|---|
| 5.3iD Engine | Kohler KSD1403NA, 25 HP / 90 Nm @ 1,800 rpm (High Torque) |
| Models Available | 5.2K / 5.3iD |
| 5.2K Weight | 1,020 kg (2,250 lbs) |
| 5.3iD Weight | 1,070 kg (2,360 lbs) |
| Fuel | Diesel |
| Emission Standard | Stage V and Tier 4 Final |
| Transmission | Hydrostatic 4WD |
| 5.2K Max Drive Speed | 14 km/h (8.7 mph) |
| 5.3iD Max Drive Speed | 12.5 km/h (7.8 mph) |
| Max Lifting Height | 2.75 m (108 in) |
| 5.2K Tipping Load | 1,110 kg (2,447 lbs) |
| 5.3iD Tipping Load | 1,290 kg (2,844 lbs) |
| 5.2K Lifting Capacity | 890 kg (1,962 lbs) |
| 5.3iD Lifting Capacity | 1,030 kg (2,270 lbs) |
| Breakout Force @ 50cm | 800 kg (1,764 lbs) |
| 5.2K Aux. Hydraulic Flow | 34 L/min (9 GPM) |
| 5.3iD Aux. Hydraulic Flow | 60 L/min (13.2 GPM) |
| 5.2K Turning Radius (in/out) | 890 / 1,890mm |
| 5.3iD Turning Radius (in/out) | 800 / 2,000mm |
| 5.2K Tyres | 23x8.50-12 |
| 5.3iD Tyres | 23x10.50-12 ET-25 |
Book a FREE Demo

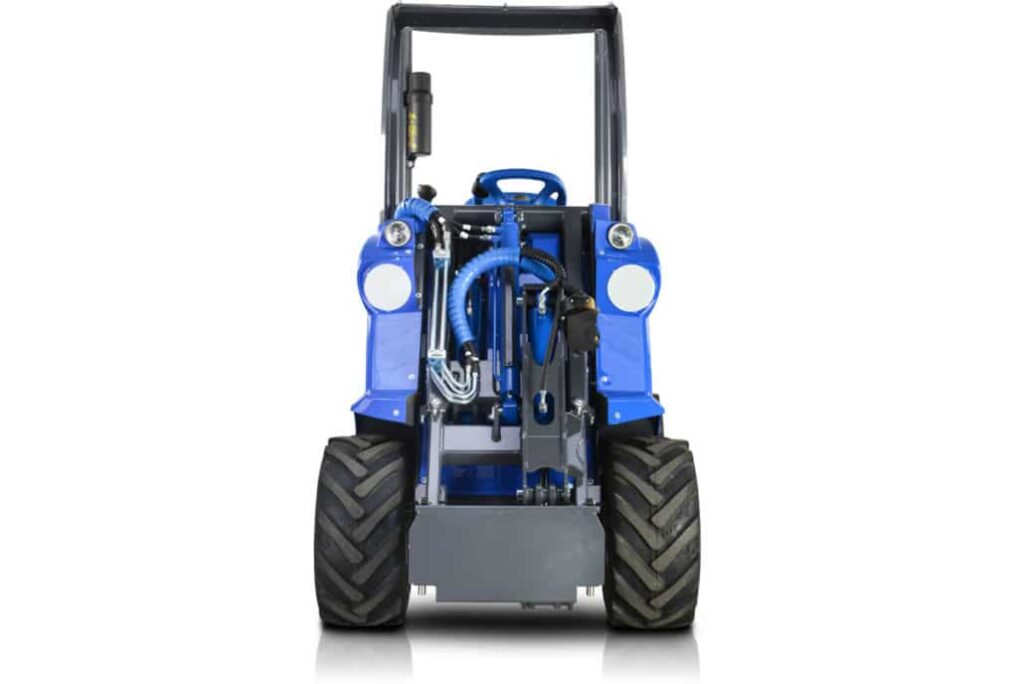

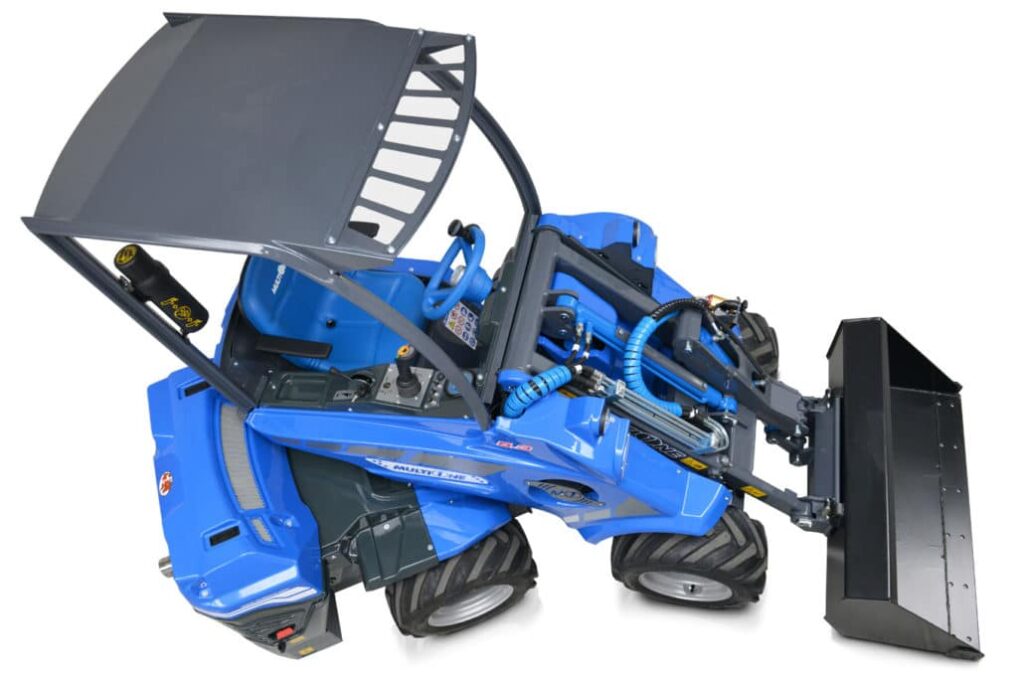

The MultiOne 5 Series combines high-torque engines, hi-flow auxiliary hydraulics, and a multi-function joystick in a compact, lightweight package that makes it a cost-effective attachments powerhouse. Available in two models — the 5.2K and the 5.3iD — the 5 Series features a telescopic boom with self-levelling for versatile lifting and material handling up to 2.75 metres.
The 5.2K is powered by a Kubota D902 diesel engine producing 25hp with 55 Nm of torque at 2,400 rpm, delivering a maximum drive speed of 14 km/h and 34 litres per minute of auxiliary hydraulic flow. Weighing 1,020kg with a tipping load of 1,110kg, it provides an impressive lift-to-weight ratio.
The 5.3iD steps up with a Kohler KSD1403NA diesel engine, also producing 25hp but with significantly higher torque of 90 Nm at just 1,800 rpm. This high-torque design delivers superior performance with attachments, supported by 60 litres per minute of auxiliary hydraulic flow. The 5.3iD weighs 1,070kg with a tipping load of 1,290kg and lifting capacity of 1,030kg.
Both models meet Stage V and Tier 4 Final emissions standards and feature hydrostatic 4WD transmission with DBS differential lock for powerful traction on any surface. A breakout force of 800kg at 50cm ensures effective excavation and loading performance. The articulated chassis provides tight turning with an inside radius as low as 800mm.
The telescopic boom reaches a maximum height of 2.75 metres with self-levelling maintaining load stability throughout the range of travel. Quick-change 3-line hydraulic couplings enable rapid attachment switching for maximum versatility across construction, landscaping, agriculture, and grounds maintenance applications.
The ergonomic operator position features a heated adjustable seat and intuitive joystick controls. The compact dimensions and manageable weight make the 5 Series practical to transport and manoeuvre on site, while delivering the lifting performance and attachment capability of significantly larger machines.
