MultiOne 2 Series
The MultiOne 2 Series is a light and powerful articulated mini loader with an impressive lift-to-weight ratio. Powered by a Kohler EFI ECV749 petrol engine producing 26.5hp with electronic fuel injection, it weighs 710kg and features 4WD hydrostatic transmission with hi-flow 42 L/min auxiliary hydraulics.
| Engine | Kohler EFI ECV749, 2 Cylinder, 747cc, Air Cooled |
|---|---|
| Power / Torque | 26.5 HP / 55.5 Nm @ 2,600 rpm |
| Weight | 710 kg (1,570 lbs) |
| Fuel | Petrol |
| Emission Standard | Stage V and EPA/CARB Phase III |
| Transmission | Hydrostatic 4WD |
| Max Drive Speed | 15 km/h (9.3 mph) |
| Max Lifting Height | 1.6 m (63 in) |
| Tipping Load | 700 kg (1,543 lbs) |
| Lifting Capacity | 560 kg (1,235 lbs) |
| Breakout Force @ 50cm | 840 kg (1,852 lbs) |
| Pushing Force | 770 kgf |
| Aux. Hydraulic Oil Flow | 42 L/min (11.1 GPM) |
| Turning Radius (inside/outside) | 700 / 1,698mm |
| Standard Tyres | 20x8.00-10 (Tractor profile) |
Book a FREE Demo

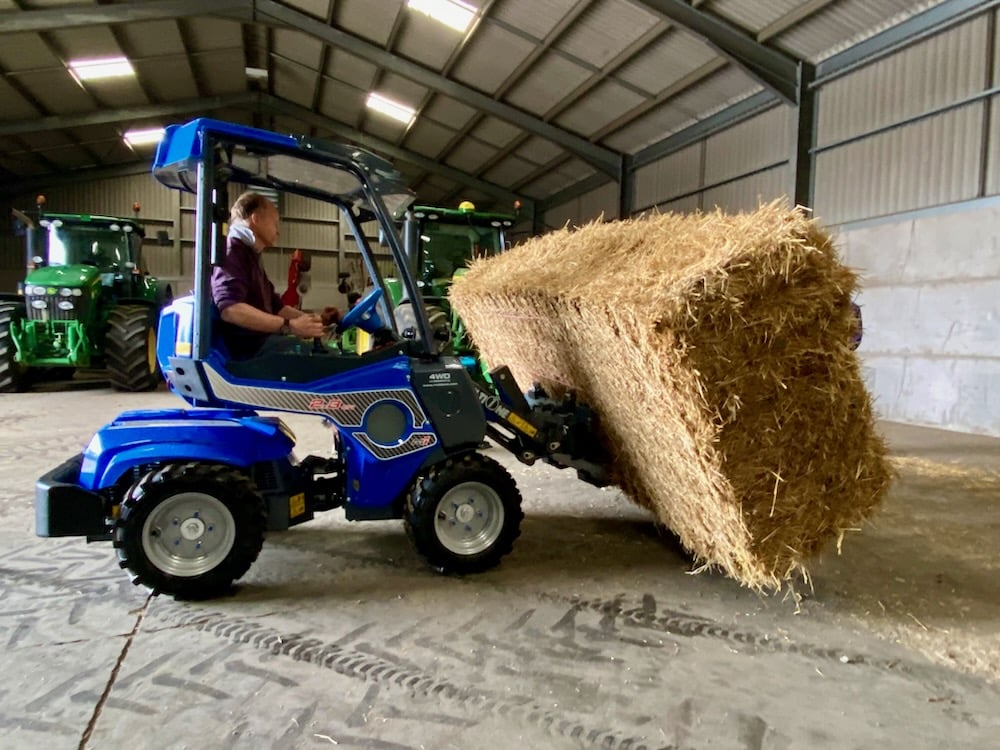

The MultiOne 2 Series is the smallest and most economical articulated mini loader in the MultiOne range, delivering high performance on any terrain. The articulated steering chassis provides a very tight turning circle for manoeuvring in the narrowest spaces, while the 4WD hydrostatic transmission with DBS differential lock system ensures powerful traction in all conditions.
Powered by a Kohler EFI ECV749 twin-cylinder petrol engine producing 26.5hp with electronic fuel injection, the 2 Series meets Stage V and EPA/CARB Phase III emissions standards. The engine delivers 55.5 Nm of torque at 2,600 rpm, providing responsive power for loading, lifting, and driving attachments. A maximum drive speed of 15 km/h makes it one of the fastest machines in its class.
The hi-flow auxiliary hydraulic system delivers 42 litres per minute through 3-line quick couplings, enabling effective operation of a wide range of attachments. The boom features self-levelling for stable load management at all heights, with a maximum lifting height of 1.6 metres. The tipping load of 700kg and lifting capacity of 560kg with backweights provide serious capability for a machine of this size.
A breakout force of 840kg at 50cm and pushing force of 770 kgf deliver the muscle needed for excavation, grading, and material handling. The turning radius of 700mm inside and 1,698mm outside ensures agility in confined working environments.
Weighing just 710kg, the 2 Series is light enough for transportation with smaller vehicles and plant trailers. Standard 20×8.00-10 tractor profile tyres provide grip across varied surfaces. The ergonomic operator area features an adjustable heated seat and intuitive joystick controls for comfortable all-day operation.

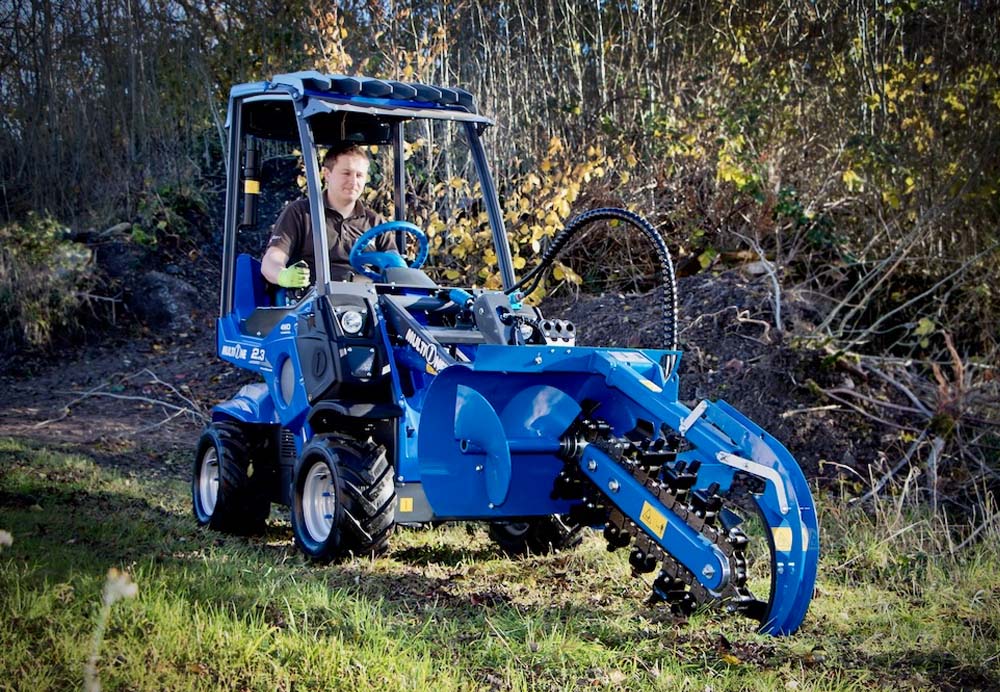

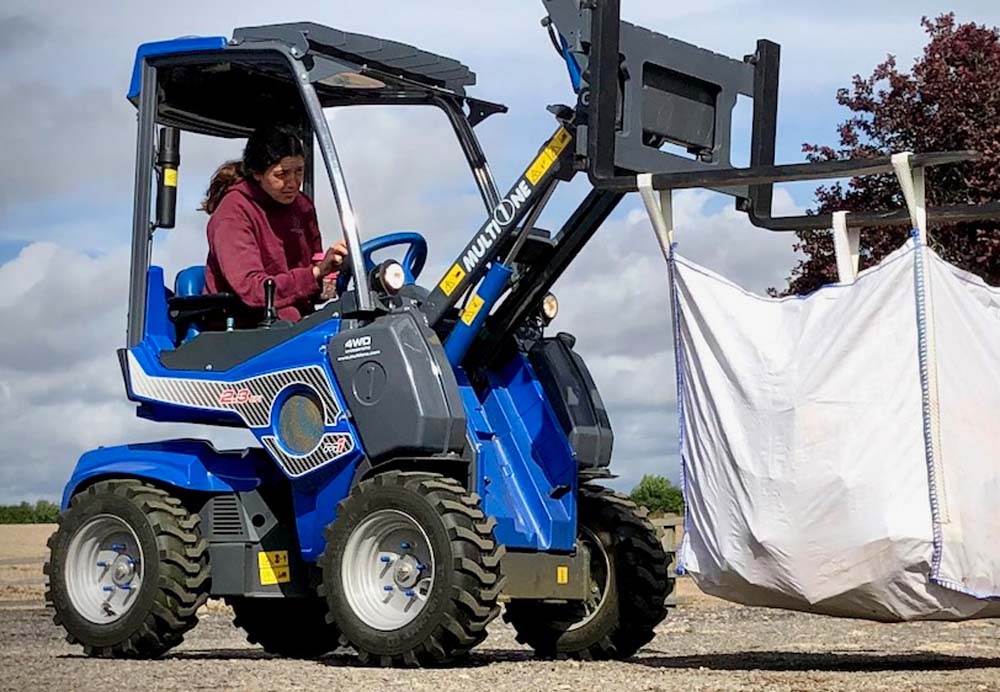

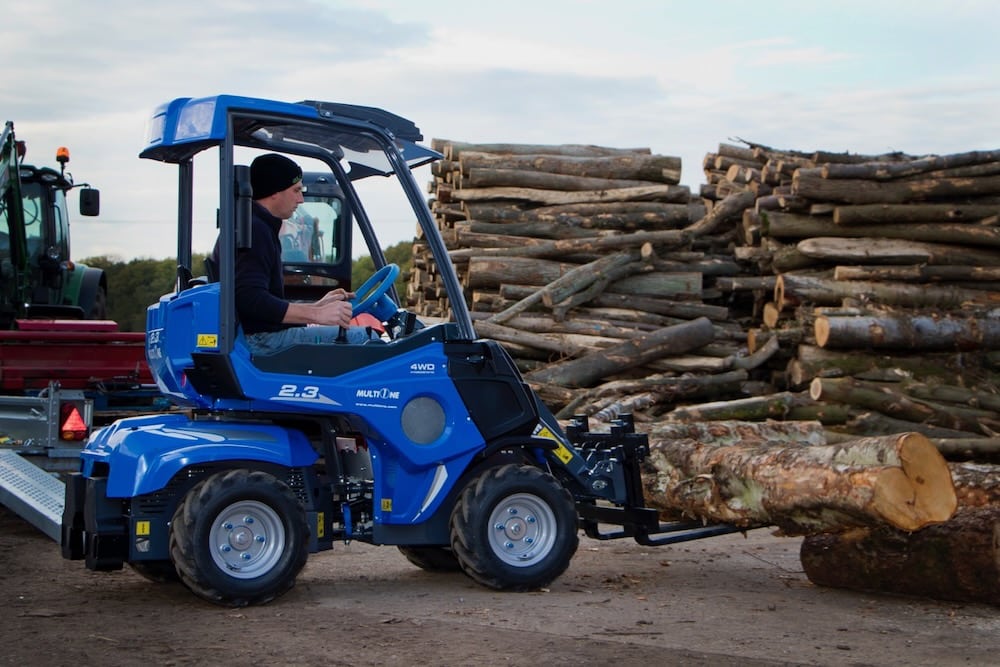

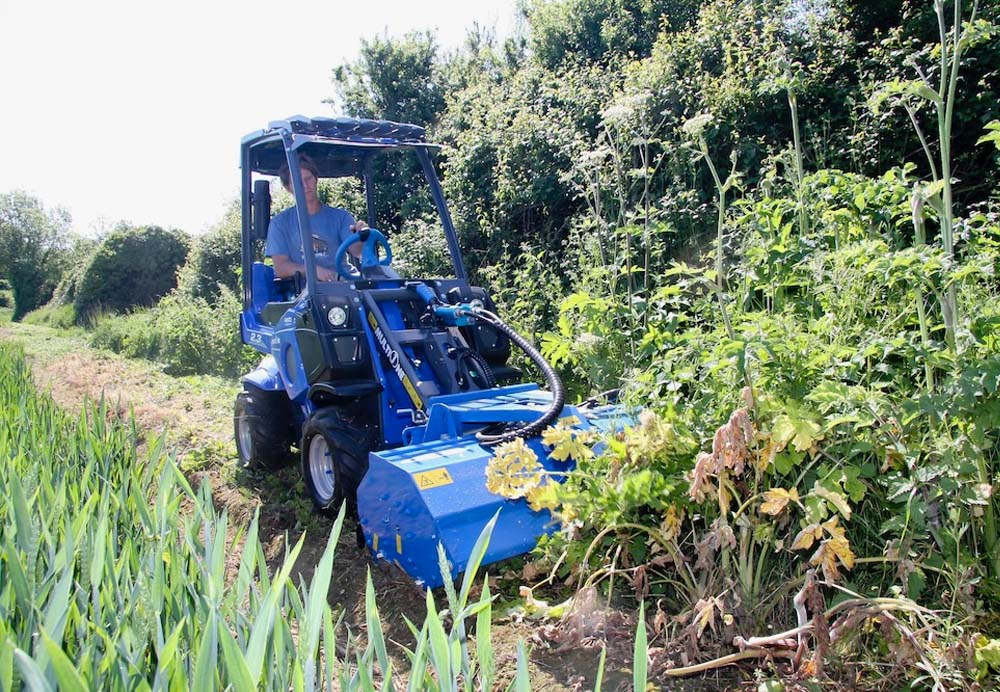

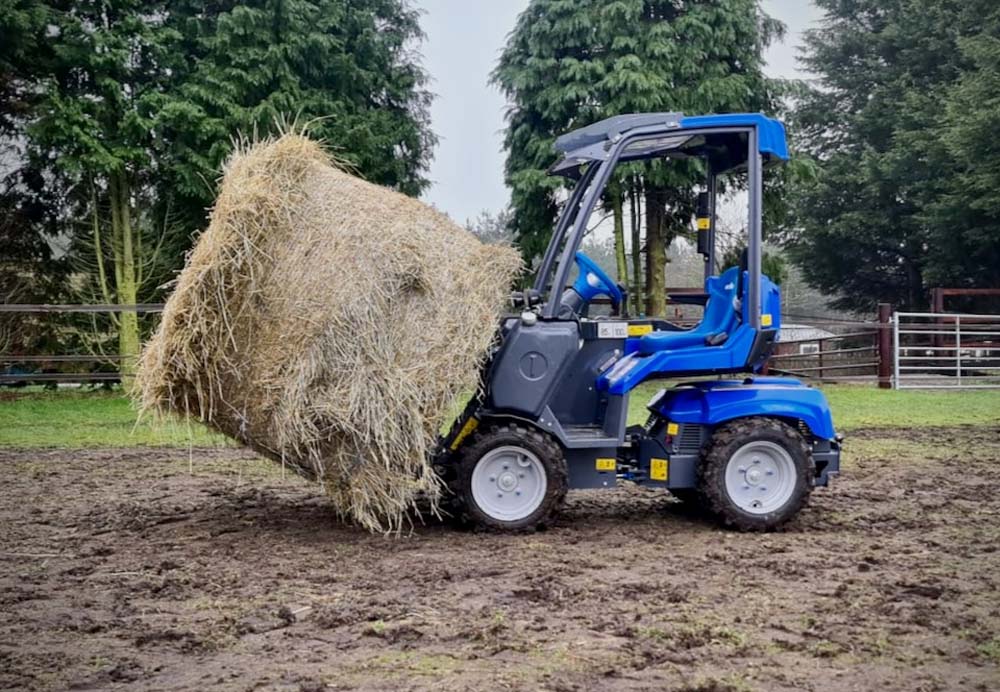

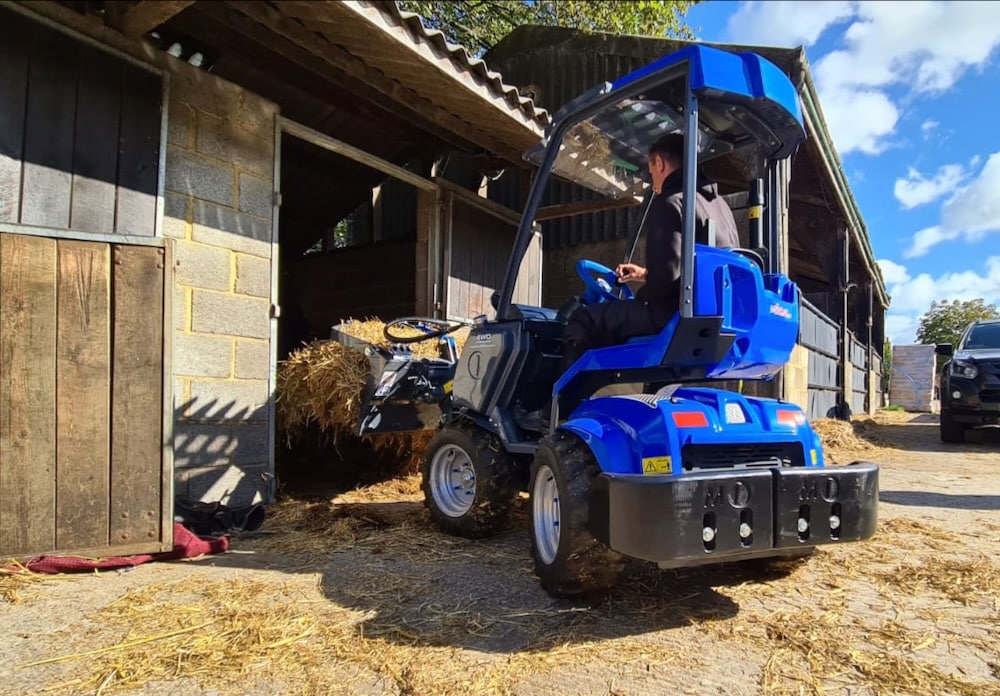

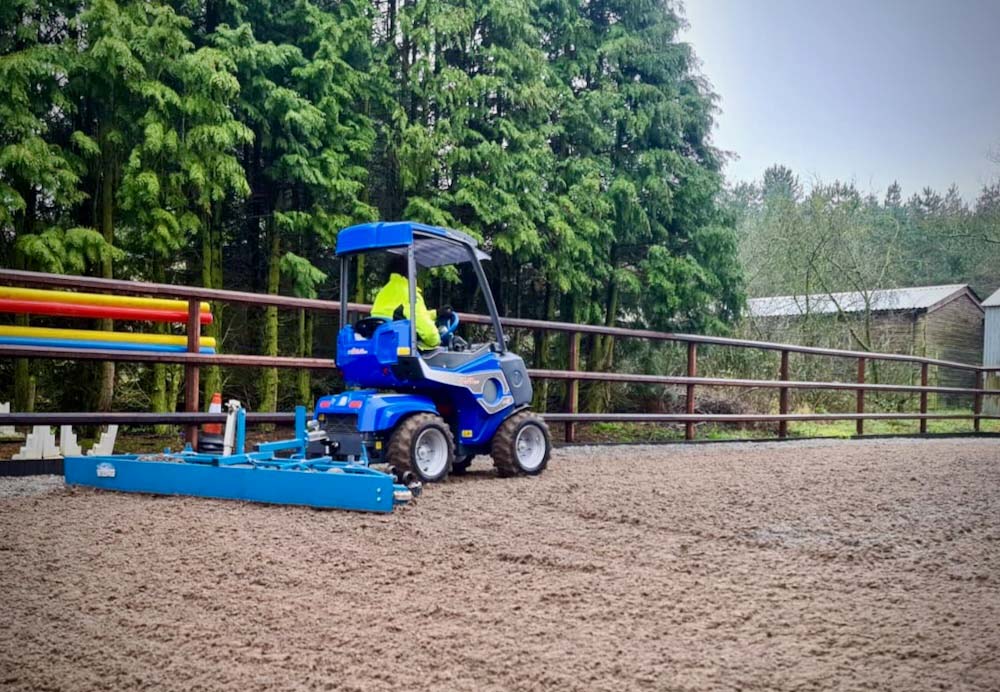

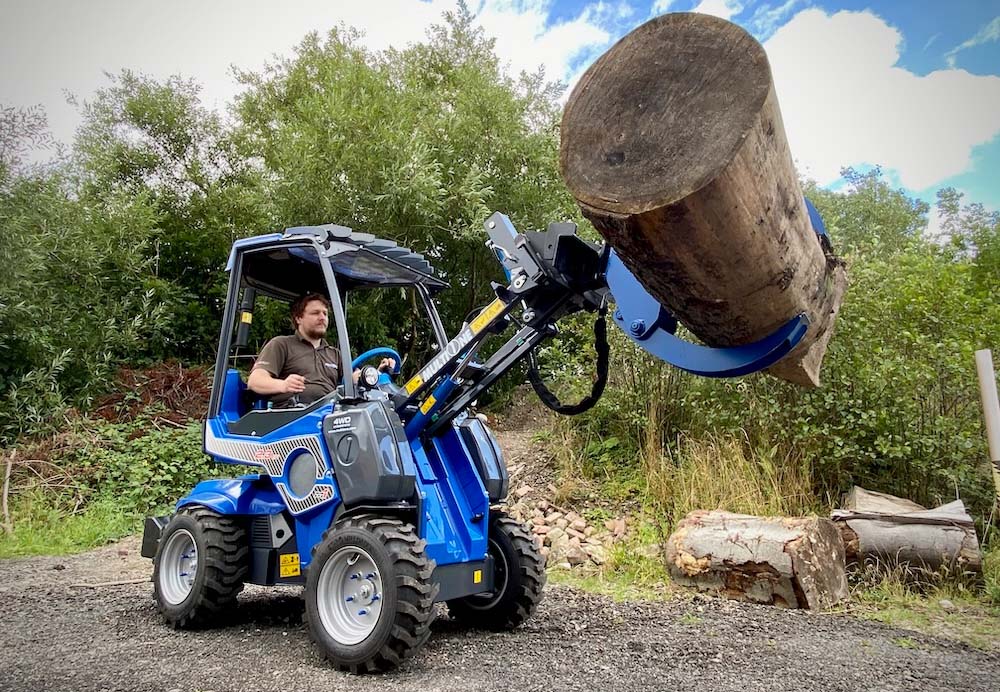

Compatible with the full MultiOne attachment range including general buckets, pallet forks, log grapples, flail mowers, and demolition grapple buckets, the 2 Series provides versatile multifunctional capability for farming, agriculture, construction, and landscaping professionals.
